Specifications for
PRO FORGE M050A
Case Form Factor
Case Form Factor
Mini Tower
Motherboard Form Factor Support
Motherboard Form Factor Support
Regular:
Micro-ATX, Mini ITX
Micro-ATX, Mini ITX
Product Name
Product Name
PRO FORGE M050A
Drive Mount Support
Drive Mount Support
2 x 2.5"
2 x 2.5" / 3.5" Combo Tray
2 x 2.5" / 3.5" Combo Tray
Dimension
Dimension
388 x 200 x 423 mm / 15.28 x 7.87 x 16.65 inches
Weight
Weight
4.40 kg / 9.70 lbs

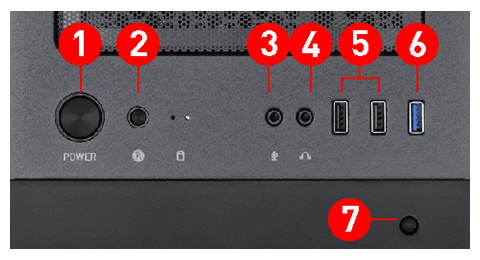

I/O Ports
I/O Ports
1 x Power Button
1 x Reset Button
1 x Audio Out
1 x Mic In
2 x USB (Type A)
1 x USB 5Gbps (Type A)
1 x LED On / Off Button
1 x Reset Button
1 x Audio Out
1 x Mic In
2 x USB (Type A)
1 x USB 5Gbps (Type A)
1 x LED On / Off Button
Case Expansion Slots
Case Expansion Slots
4
Maximum PSU Length
Maximum PSU Length
170 mm / 6.69 inches
Fan Support
Fan Support
Front: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Top: 2 x 120 mm
Side: N/A
Bottom: N/A
Rear: 1 x 120 mm
Top: 2 x 120 mm
Side: N/A
Bottom: N/A
Maximum GPU Length
Maximum GPU Length
300 mm / 11.81 inches
Radiator Layout
Radiator Layout
Front: N/A
Rear: 120 mm
Top: 120 / 240 mm
Side: N/A
Bottom: N/A
Rear: 120 mm
Top: 120 / 240 mm
Side: N/A
Bottom: N/A
Maximum CPU Cooler Length
Maximum CPU Cooler Length
160 mm / 6.30 inches
Radiator Compatibility
Radiator Compatibility
120 / 140 / 240 mm
Lightning
Lightning
Front: 3 x 120 mm Auto RGB Fan
Rear: 1 x 120 mm Auto RGB Fan
Rear: 1 x 120 mm Auto RGB Fan
Power Supply
Power Supply
ATX
Gross Weight
Gross Weight
5.23 kg / 11.53 lbs
