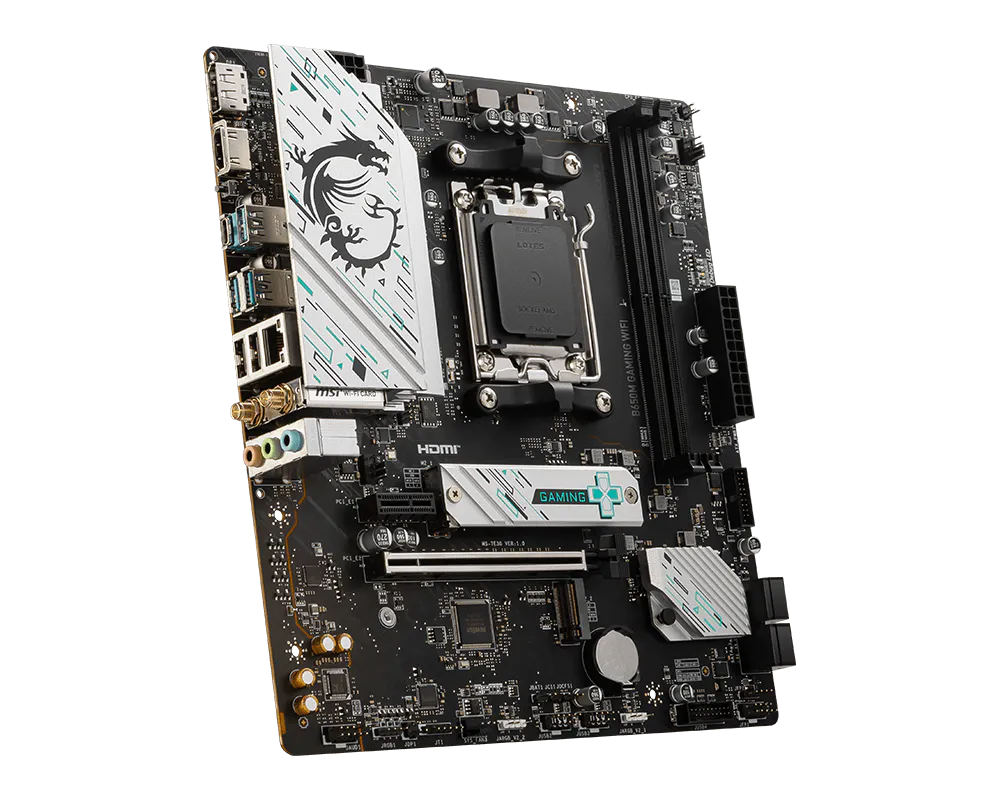

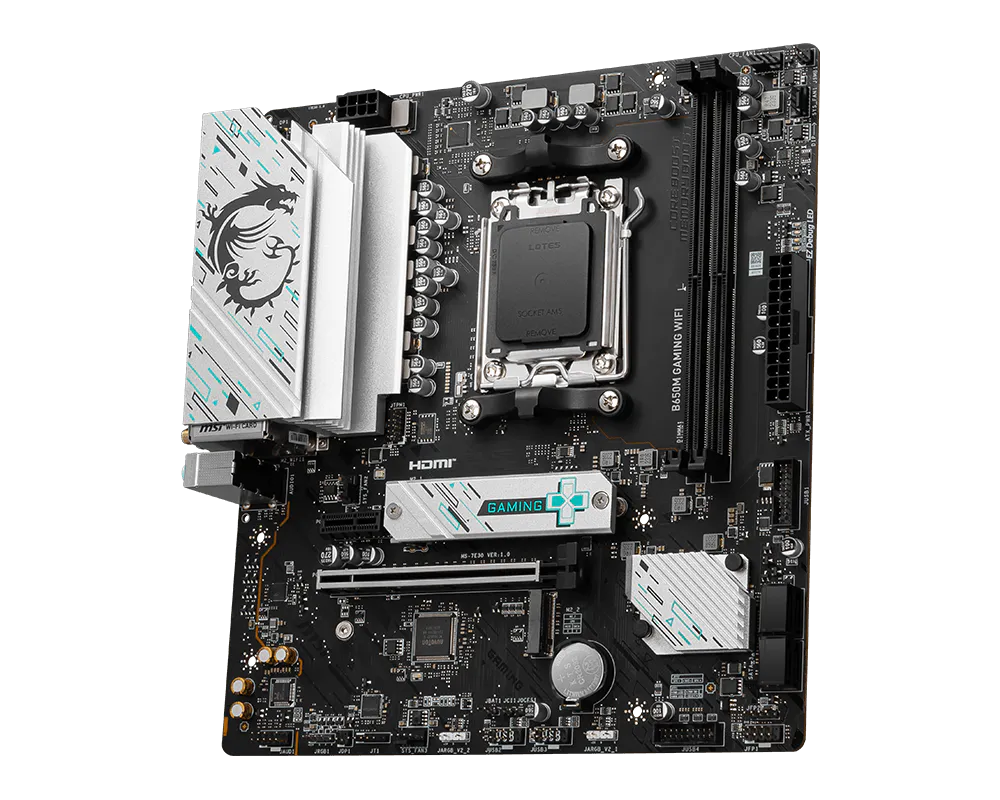

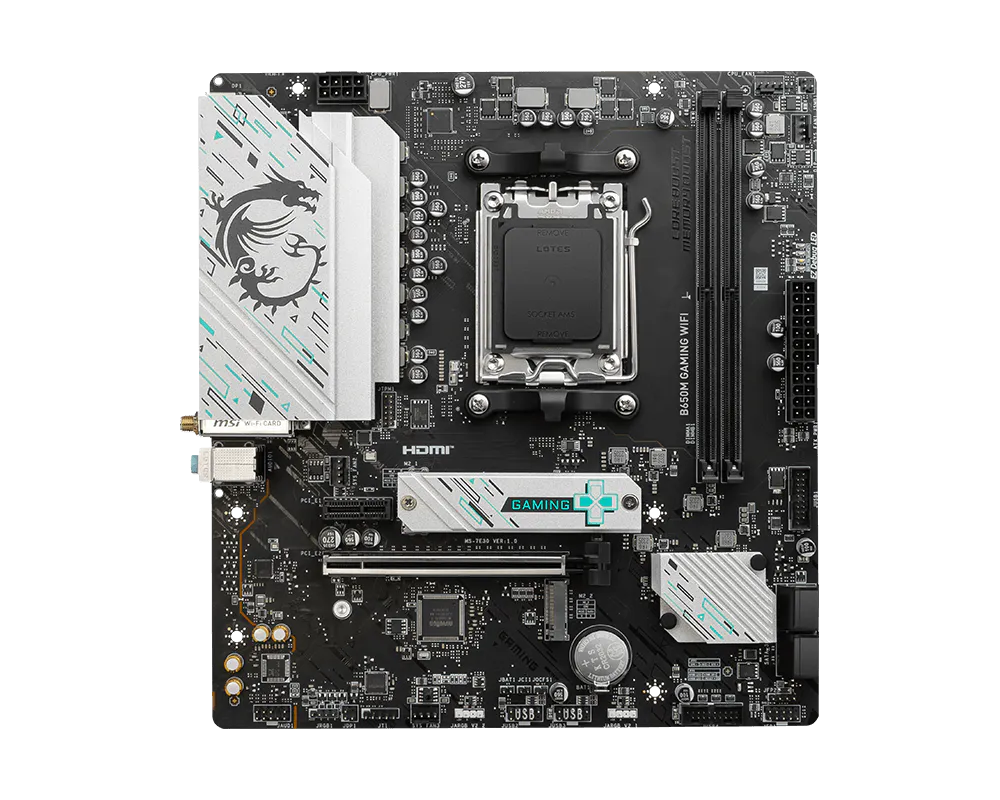

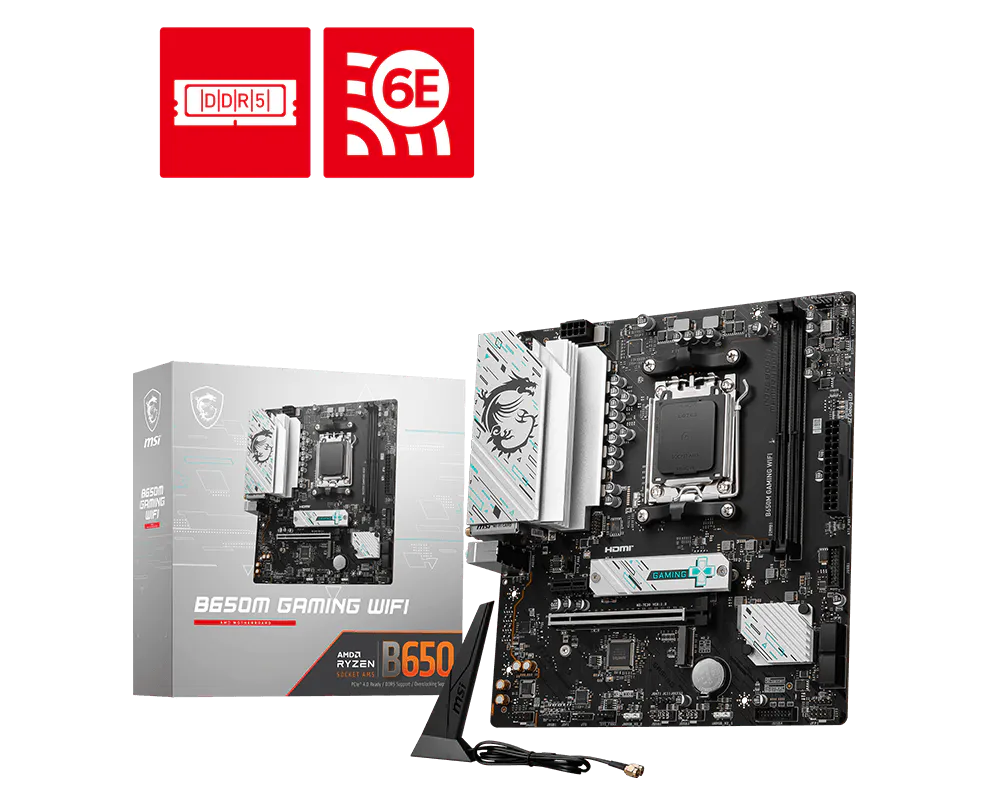

B650M GAMING WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
STABILITY & DIY FRIENDLY
6 Layer PCB with 2oz Thickened Copper
Core Boost Technology
Steel Armor
HIGH-SPEED TRANSMISSION
2.5G Network Solution
Wi-Fi 6E
Memory Boost
Lightning Gen 4
ENHANCED COOLING MODULE
Extended Heatsink
M.2 Shield Frozr
Heatsink with 7W/mK Thermal Pad
DIY FRIENDLY DESIGN
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
More Features
LESS STEPS, CONTROL EASILY
EXPLORE THE FEATURES
EZ DEBUG LED
Onboard LEDs indicate the source of the problem so you know exactly where to look to get up and running again.
EZ LED CONTROL
A built-in LED switch on the motherboard to control your light effect. Turn on/off your light in a second!
HARDWARE
- cooling
- power solution
- Diy Friendly
- cooling overview
- Fully Fan Control
Cooling Overview
-
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.
-
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
-
7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
Fully Fan Control
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
- PCB DESIGN
- EZ OC TUNING
- MORE FOR PERFORMANCE
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
- 6 PCB layers
- 2oz Thickened Copper
EZ OC TUNING
MSI PBO Thermal profiles are setting maximum CPU temperature at 85°C, 75°C and 65°C levels. With the thermal profiles, the CPU operates at lower voltage and temperature but remaining the same performance.
Config TDP is designed to provide ECO Mode (65W) or different TDP (PPT/TDC/EDC) settings for advanced users. By offering several profiles for different TDP settings in Click BIOS 5, Config TDP makes setting TDP profiles easier and don’t need to modify settings manually for each TDP.
MORE FOR PERFORMANCE
- EZ M.2 CLIP
- DRIVER UTILITY INSTALLER
- FLASH BIOS BUTTON
- MORE FOR DIY FRIENDLY
EZ M.2 CLIP
Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
MSI DRIVER UTILITY INSTALLER
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks. Learn more
*Please ensure to connect the internet, or the Driver Utility Installer won’t launch automatically.
BOOT UP GUARANTEED
Run into trouble when updating your BIOS or somehow corrupted it? Don't worry, MSI motherboards offer multiple options to successfully boot your system again.
MORE FOR DIY FRIENDLY
* Please ensure to remove the unnecessary mounting stand-off when installing the motherboard into the case.
PERFORMANCE
- Expansion
- memory
- Bios & software
- LIGHTNING GEN 4 PCI-E
- STORAGE
Lightning Gen 4 PCI-e with Steel Armor
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
FAST AND FUTURE-READY STORAGE
MSI B650M GAMING WIFI series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.a
2x
4x
- DDR5
- EXPO
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B650M GAMING WIFI is ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
EASY OVERCLOCKING WITH EXPO PROFILE
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.
- CLICK BIOS 5
- MSI CENTER
- AIDA64
- NORTON 360
- RESIZABLE BAR
CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
-
EXPO(EXtended Profiles for Overclocking)
Choose from a preset EXPO profile and automatically overclock compatible DDR memory.
-
Game Boost
Quickly overclock your CPU with a single button for more performance.
-
M-FLASH
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
-
HARDWARE MONITOR
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
-
MEMORY TRY IT
Get extreme speed out of your system memory and get more performance.
-
SEARCH & FAVORITES
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.
MSI CENTER
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
Exclusive UI of AIDA64 Extreme
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
Opt-in to Cyber Safety with Norton 360 Deluxe
Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.
- Up to 50 GB PC cloud backup
- Real time Threat protection and Smart Firewall
- Password manager
- PC SafeCam
The MSI trial offer is not available for existing Norton customers. If you have an active Norton subscription, you will need to opt-out of the existing subscription to be eligible for this offer. For Important Subscription, Pricing and Offer Details, please refer to NortonLifeLock License and Services Agreement. NortonLifeLock Product and Service Privacy Notices.
RESIZABLE BAR
Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
Connectivity
- audio
- mystic light
- networking
- Audio Boost
- Isolated Analogy Structure
Audio boost
- HIGH DEFINITION AUDIO PROCESSOR
- HIGH QUALITY AUDIO CAPACITORS
- HIGH QUALITY AUDIO JACKS
- ISOLATED AUDIO SIGNAL
- DE-POP PROTECTION
The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
* The image above is an illustrative reference. Please refer to specification pages for more details.
- Synchronize
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
*Gen2 device only supports 7 RGB themes
- 2.5G Lan & Wi-Fi 6E
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Wi-Fi 6E
- Bluetooth 5.3
- 2.5G LAN
B650M GAMING WIFI
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
